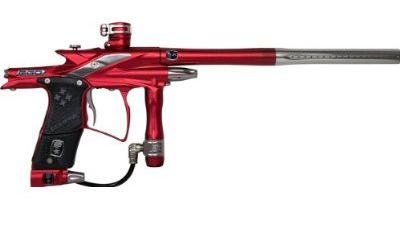

Ego 9



The Eclipse Ego has always been built around the solid foundations of Reliability, Performance, Light-Weight and Simplicity. And the Ego9 is no exception. It is obvious from the outset that the ground-up re-working of the Ego9 was undertaken with the sole purpose of improving on every one of those key aspects. In fact, performance in almost every area has been increased substantially over the previous generation of Ego.

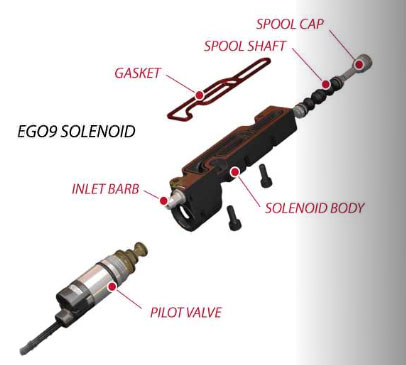

The major difference with the new Ego 9 compared to its predecessors is that it no longer uses QEVs (Quick Exhaust Valve). Instead, PE integrated a brand-new “bespoke solenoid valve” which is mounted and ported directly into the rammer chamber. You still receive the same cyclic speed and performance you would have when using QEVs, but this ground-up solenoid design gives the Ego 9 “absolute maximum performance” in terms of response time and flow rate for your gun. So instead of having to run a hose from the QEV to the solenoid valve, you just have one hose that runs from the LPR down to the new solenoid valve. This new design by PE improves over air efficiency and response time, as well as physically optimizing the gun. Simplicity and efficiency rule the game.








Ego 9 Specifications
# Poppet Valve Design

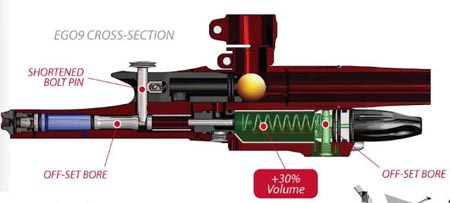

# Off-Set Lower Bores (Reduces off-axis forces)
# Low Pressure operation (160psi @ 290fps)
# Air Efficient 1700+ Shots (from 68/45)
# Ultra High Performance Solenoid Valve
# Direct Porting System for Solenoid Inlet and Exhaust Pathways
# 2.5 x Larger Air Flow from LPR to Solenoid
# Zick Rammer Assembly
# 30% Increase in Valve Chamber Volume
# Cure2 Bolt
# Integrated LPR Assembly
# Eclipse Family Features
# BBBSS (Break Beam Sensor System)
# Black-On-White Transflective LCD Module
# Def-Tek Offset Feed
# C-Lever Clamping Feedneck
# Dual Selectable Trigger Switching (Opto and Micro Switches)
# Dual Trigger Return Mechanisms (Spring and Magnetic Return)
# Integrated Audible Beeper for Alarms and Actuation
# Capped and Uncapped Ramp Modes
# All Major Tournament Presets
# 9 Preset Debounce Modes
# 5-Point Adjustable Trigger
# T-Rail Mounting System
# OOPS (On/Off/Purge) ASA System
# S3 Self-Purging In-Line Regulator
# 14” Shaft3 2-Piece 0.693” Barrel
